Simple Web Browser Power Control

The web browser interface provides the easiest means of managing multiple outlets. One master unit can be connected to 15 expansion units, managing 128 outlets from a single web page interface.

The web page presents a clear status indication of each outlet, current draw across all inputs and the AutoPing monitoring, if implemented.

Each outlet can be individually selected, or multiple outlets can be simultaneously operated. User selectable cycle timer allows single command reboot. Delay timer limits inrush current by staggering power up when multiple devices are simultaneously controlled.

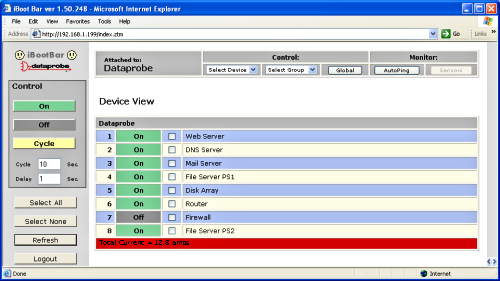

Web Browser Screenshot shows iP-810 web control. Also control with telnet. Reboot or power cycle any device from any network location, even the kiosk at the airport.

Simple Web Page Control

Multiple Users / Multiple Rights

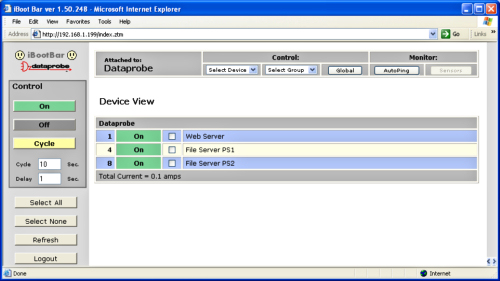

Up to 15 users can be identified, each with specific rights to one or more outlets, as well as administrator rights for programming the system. User rights can span multiple units, so that one user can command a specific outlet in each of several data cabinets. Users only see the outlets they have rights to.

User rights function the same for both web browser control and the Telnet or serial command line interface.

Multi User Setup

Group Outlets

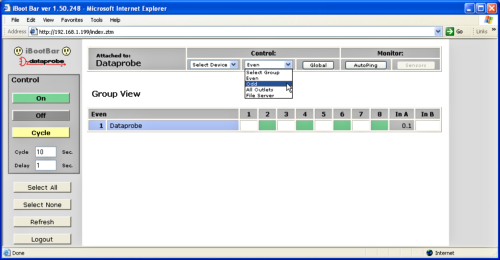

Two or more outlets can be grouped together for simultaneous action. Link all email servers together to reboot the entire system, or group both power feeds for dual redundant servers, and reboot the server with one command.

Like outlets, groups are individually named and assigned to users as required.

Group outlets across multiple iBootBars to simultaneously manage like devices across cabinets throughtou your data center.

Outlet Group Control

Control 128 Outlets from
1 IP and Web Page

Link 16 iBootBars together with the Expansion Port and manage 128 outlets from as ingle IP Address and Web Page. Group outlets accross racks to reboot multiple outlet simultaneously.

Assign users rights to similar devices throughout the data center. Use the expansion to conserve IP addresses, or connect each device to the network for additional access capabilities.

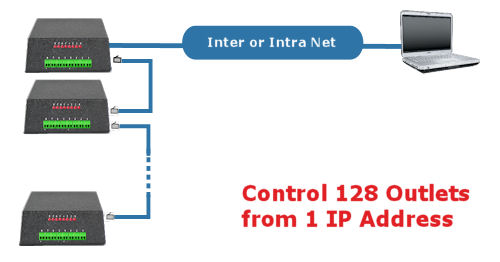

iBootBar Cluster Configuration. Link 16 iBootBars together to control 128 outlets from a single IP address and web browser page.

Manage Multiple iBootBars

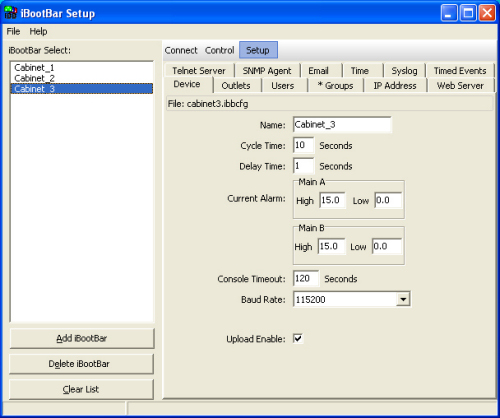

The iBootBar Setup and Control Utility allows simple management of an unlimited number of iBootBars in the field. All configuration parameters can be set, saved, cloned, uploaded and downloaded to or from any iBootBar. This makes it easy to make configuration changes to similar units, or to pre-configure many units prior to deployment.

The Setup and Control Utility also provides secure power management for all outlets deployed worldwide.

Features

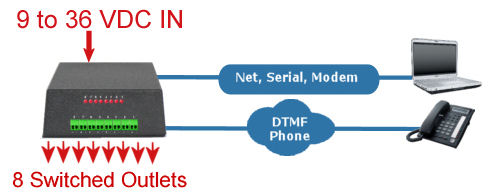

Access from any Network point or any Telephone

No field trips required for Reboot. Save time and money by eliminating service calls and reducing downtime to a minimum.

Multiple Control Options

Web	Intuitive Browser Interface
Telnet	Complete setup and control access
SNMP	Easy integration into network management systems
Serial	Out-of-band access
Internal Modem	Menu and DTMF dial tones

Multi-User

Assign permissions to each user for outlets and configuration. Users see only outlets assigned

IP Addressed, 10/100Base-T

Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.

Automatic Reboot Operation

AutoPing Automatic Operation for crashed devices. AutoPing pings device and takes action when no response. Complete control over frequency and timers.

Group and Stagger

Combine any outlets into logical groups and power up devices in sequence to reduce power surges.

Manage 128 Outlets

One IP address and Web Page for up to 128 outlets.

Setup and Control Utility

Save, Clone, Manage multiple configurations. Makes deployment of similar units a snap.

SSL Certificate Utility

Create and deploy SSL Certificates. Self Signed or Root Authority Certificates

Direct TCP Messaging

Integrate iBootBar into your OEM application with direct TCP messaging protocol. Compatibility Mode for original iBB-N15 series products. (requires firmware update to iBootBar Precision. See Resource Tab)

Specifications

PHYSICAL:

Height:	2.0 in (5.1 cm)
Width:	5.0 in (12.7 cm)
Depth:	7.0 in (17.8 cm)
Weight:	4 lbs (1.8 Kg)

Temperature
Operating:	0 to 40 o C
Storage:	-10 to 85 o C
Relative Humidity	0 to 95% Non-Condensing

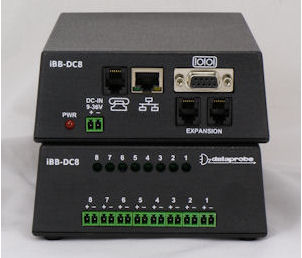

D/C INPUT

9 to 36 VDC. Two Plugable Screw Terminals.

SWITCHED OUTLETS

Eight, 2 position plugable screw terminals
5 Amps Max Per Outlet, 8 Amps Maximum Total.

NETWORK

10/100 Ethernet
Web, Telnet, SNMP, SMTP
Port Assignable for Web and Telnet.
SSL Security on Web control

SERIAL PORT

D9 Serial, configured as DCE. to 115.2Kbps

INTERNAL MODEM

56Kbps V.92 Global Compliance, Data or Tone Dial (DTMF) control

COMPLIANCE

CE Marked
RoHS / WEEE Compliant
FCC Part 15 Class B

Resources

Tools for iBootBar Users
Standard Resources
Operations Manuals	Installation and Operations Instructions	Manual .pdf
SNMP MIB	SNMP V1	Download .mib
User Resources
Setup and Control Utility	Administer Multiple iBootBars from one location Use version that matches iBootBar Version	Ver 1.5 .exe
Batch File Utility	Integrate iBootBar into Automated Processes, or One Click Reboot from your Desktop!	Download .zip
Certificate Utility	Generate and Install SSL Certificates	Download .exe
Upgrade Resources
Latest Version	iBB_upg_1.50.258 Incl. Upgrade Utility, Manual	Download .exe
Upgrade Procedures	Instruction .pdf Included with complete package	Download .pdf
