IPIO-8
웹상에서 8개의 I/O 컨트롤 및 모니터링.
  판매가격 원
  제조사 Dataprobe
  생산국 USA
  배송기간 결제 확인후 20 ~ 30 일
  수량
수량 하나 증가
수량 하나 감소
관심상품 찜해놓기 친구에게 상품추천 장바구니에 담기

    The most flexible, networked relay controller available

    • Web Browser Relay Control

    • Ethernet I/O

    • Transport GPIO over the Network

    • Contact Closure via IP

    • 8 Form C Relays

    • 8 Digital Inputs - Wet or Dry

    • One Input to Many Outputs

    • Many Inputs to One Output

    • Any to Any - Many to Many

          ipio web control of relays, contact closure transport over network


    ipIO-8 은 IP 주소가 부여되어 인터넷 웹상에서 digital input 과 output 단자를 Control 할 수있는 네트웍 장비입니다. ipIO-8 는 표준 web browser로 각각의 단자를 컨트롤 및 모니터링 할 수 있습니다. 네트웍을 통해 I/O 정보를 전송하기 위해 그들 자신들 사이에 통신을 할 수 있습니다.


    Operation

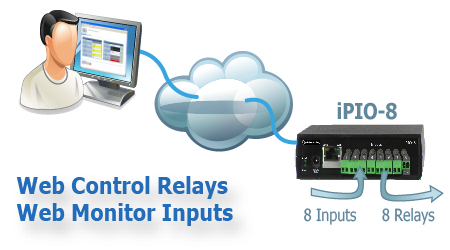

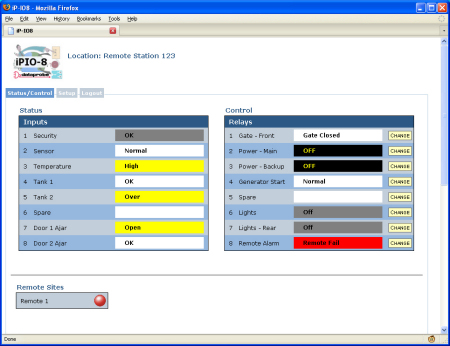

    Simple Web Browser Control and Monitoring


    The Status and Control web page provides real time status of the inputs, outputs and remote iPIO unit connections.

    The top of the page indicates the location reference, which is user settable.

    Each input, output and remote device is defined by a user selectable name. Inputs and outputs can also be assigned names for Open and Closed statuses, as well as background and text colors for each. All configurations are accomplished via the setup tab at the top of the screen.

    If the iPIO-8 is programmed to communicate with additional units, each remote unit will be displayed at the bottom of the page. Each remote site displays red or green, indicating connection status.

    		web control relay and status using ipIO. 8 form c relays and 8 digital inputs.

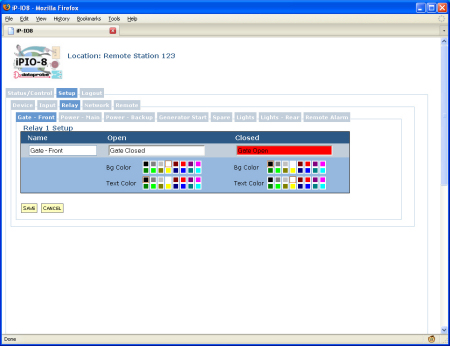

    Easy Web Setup


    All configuration parameters are set up using the clean web browser interface. Each location, input, output and remote device can be user named for easy identification. Open and Closed status for both inputs and relay outputs use user selectable colors for quick identification and instant understanding of your entire network.

    All Status, Control, and Setup functions are password protected. Two levels of password access restrict setup functions to administrators only.

    		 relay setup for ipIO. Control 8 form C relays and monitor 8 digital inputs



    Applications



    The ipIO is uniquely capable of a wide range of digital input and output applications:
    • Environmental Monitoring
    • Manufacturing Control
    • Factory Automation
    • Process Control
    • Manufacturing Test Systems
    • Security and Gate Control
    • Ethernet I/O Transport
    • Custom OEM Solutions
    • Building Automation Systems
    • Custom OEM Solutions
    • Laboratory Automation
    		 iPIO web controlled relays. Remote control eight relays and monitor eight status inputs.

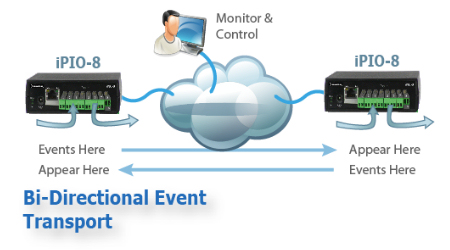

    Transport Digital I/O across ethernet networks with IP protocols using the ipIO.  Configure pairs of ipIO units to monitor up to eight digital inputs, any changes in status appear at the other end of the network as eight relay outputs.

    The ipIO provides constant link supervision, alerting you to link failure, so you always know you system is operational before it is needed.

    ipIO links are bi-directional, so events in either location are reflected at the other site.

    		 bi-directional transport of contact closure relays over the network. iPIO-8 contact closure transport over network application.

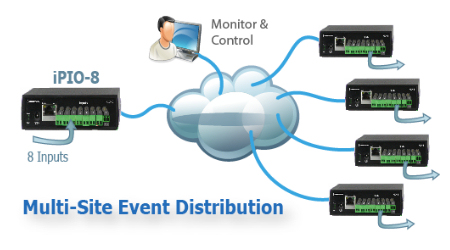

    One digital input can trigger relay controls at multiple remote locations. Imaging one alarm input triggering events throughout your network, in the same building, or across the globe.

    • Climate Control
    • Security Alert
    • Firehouse Doors
    • Irrigation Systems
    • Industrial Control

    One Input to Many Outputs
    Any Input to Any Output    		 One input can control mutliple remote outputs at up to 32 locations. iPIO-8 alarm event distribution.

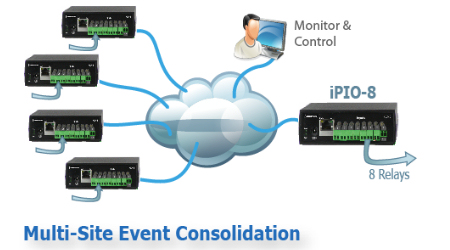

    Events from multiple locations can be consolidated to a central alarm point. Digital inputs from any iPIO unit can be mapped to the relay output of any other.    Where multiple inputs are mapped to a single relay, the relay always reflects the last changed status of any of the inputs.

    • Environmental Alarm Summary
    • Storm Warning Systems
    • Security Alert
    • Pump Control

    One Many Inputs to One Output
    Any Input to Any Output     		Mutliple alarm sites can report to central location. iPIO-8 multi-site event application.
