PowerDsine 7000G series (PD-7000G) 는 업계 최초로 High-Power를 지원하는 Power-over-Ethernet Midspan 제품으로, Gigabit를 지원하며, 향상된
management를 지원하는 장비 입니다.
High-Power (>13W)
Ethernet-based을 요구하는 PTZ Cameras, 802.11n Access Points와 같은 장비를 타켓으로 만든 제품이며,
Thin-Clients, WiMAX transceivers, Video Phones 등등을 지원합니다.
The PD-7000G family comes in 6-, 12- and 24- port models to answer the needs
of any deployment size - from low to high port density. These come in addition
to the PD-7001G, the 1-port
high-power unit, targeting single port deployment needs.
Each PD-7000G multi-port unit includes a management option to allow simple
and efficient monitoring and control of the network devices. Using 'PowerView Pro' -
PowerDsine's secure SNMPv3 management application - tasks such as remote
power-off/power-on, unit scheduling, UPS power monitoring and web-based
monitoring can be easily performed.
The PD-7000G series allow a safe and cost effective PoE solution for Ethernet
end terminals. More devices can be powered via the network, thus eliminating the
need to use a power supply and install costly power outlets close to the end
device. In addition, using the PD-7000G series, which is powering on the spare
pairs as required by the PoE standard, a customer can be ready for 4-pair
powering by combining with another PoE switch later on.
The PD-7000G series can be used to power non-PoE devices using the new
PowerDsine High-Power splitter series - PD-AS-701.
The PD-AS-701 comes in 3 different output voltages - 12v, 18v and 24v *.
The Gigabit interface makes PD-7000G series the perfect solution for Gigabit
Video phones, WiMAX transmitters or 802.11n access points.

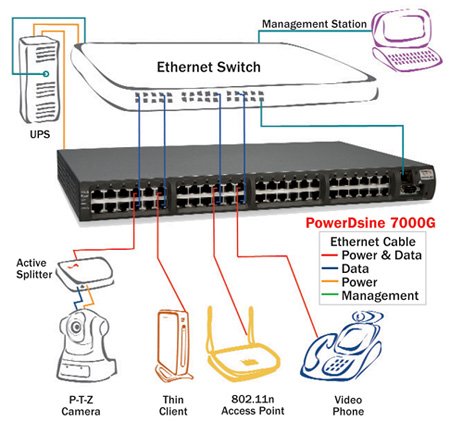

A PoE Midspan (PoE injector) resides between the Ethernet switch and the data
terminals, delivering data, along with power, from switch to powered devices. It
is a highly effective means for injecting power into LAN cables.
