Introduction

Cost-Effective 12 Port Power over Ethernet Midspan

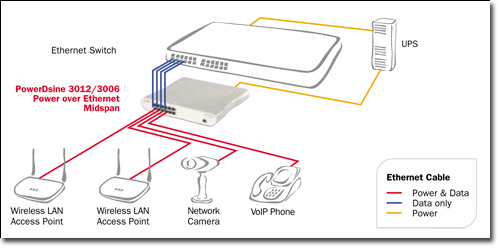

PowerDsine's Power over Ethernet (PoE)3000 Midspan (PoE injector) family는 완벽하고 경제적인,12 - port의 Midspan (PoE injector)을 제공합니다. 무선 AP와, 다른 밀집되지 않은 소수의 장비 설치시, 원격에서 Lan calbe로 Ethernet data와 함께, 장비의 전원을 보내기위한 IEEE 802.3af 규격에 완벽히 호환됩니다. 3006 PoE Midspan은 외부 power supply의 설치 및 AC/DC 전원 케이블 포설의 필요성을 제거함으로서, 기존의 Ethernet 기반위에서 신뢰성있는 전원과 안전,편리,완벽함을 제공합니다.		PowerDsine® 3012/3006
The 3000 family features: Fully IEEE 802.3af standard compatible Compatible with IEEE 802.3af or legacy Cisco powered devices Safe and reliable powering of wireless LAN access points, IP phones and low-port density installations Automatic detection and protection of non-standard Ethernet terminals Compact design specifically tailored for small and medium businesses Scalable solution offers 1/6/12-port products
Products benefits include: Cost effective power distribution for wireless LAN access points,IP Phones and network cameras Safe powering of standard compliant,as well as pre-standard end-terminals Powers all major wireless LAN access points and IP phones Investment protection of existing Ethernet switches and cabling infrastructure Saves time and reduces installation costs Easy plug-and-play installation Cleans up low density wireless LAN deployment and eliminates the need for multiple one-port PoE solutions
Order Information Order Number Description 6-port Power over Ethernet Midspan PD-3006/AC AC Input 12-port Power over Ethernet Midspan PD-3012/AC AC Input 19-inch Mounting Bracket kit for 3012/3006 PD-3000/MBK Brackets for 19'' rack mounting



Parameter	Description
No. of Ports	12/6
Data Rates	10/100 Mbps
Power over Ethernet Output	Pin Assignment and Polarity: 4/5 (+),7/8 (-) Output Power Voltage: -48 User Port Power: 15.4W min. Aggregate Power: 93W Power 3012 management
Input Power Requirements	AC Input Voltage: 90 to 264 Vac AC Input Current: 2A @110 Vac, 1A @220 Vac AC Frequency: 47 to 63 Hz
Dimensions	280 mm x 247 mm x 48 mm 11.02 in.x 9.7 in.x 1.9 in.
Weight	2.4 lbs (1.1 kg)
Indicators	System Indicator: AC Power (Green/Orange) User Indicator: Channel Power (Green/Orange)
Connectors	Shielded RJ-45,EIA 568A and 568B
Environmental Conditions	Operating Ambient Temeprature: 32° to 104°F (0 to 40°C) Operating Humidity: Maximum 90%, non-condensing Storage Temperature: ?° to 158°F (?0° to 70°C) Storage Humidity: Maximum 95%, Non-condensing Operating Altitude: -1000 to 10,000 ft.(-304.8 to 3048 m)
Regulatory Compliance	CE
Electromagnetic Emission & Immunity	FCC Part 15, Class B with FTP cabling EN 55022 Class B (Emissions) EN 55024 (Immunity)
Safety Approval	UL/cUL per EN 60950 GS Mark per EN 60950
