OHM66/OHM88 : 6x6/8x8 HDMI Matrix Router

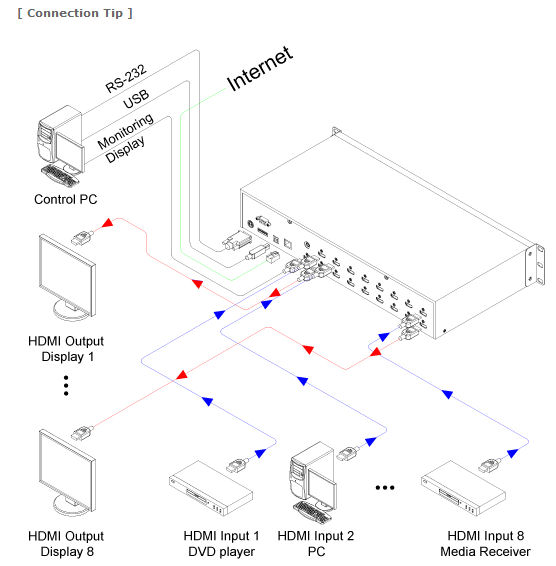

The OHM88 and OHM66 enable you to make cross-switch between up to 8 or 6 HDMI/DVI sources from HD set-top boxes or host computers to 8 or 6 digital HDTVs or displays by using not only general PC software like Hyperlink terminal (serial communication) or web browsers (LAN) but also Opticis' dedicated software in our shipping group. Easy programming feature for EDID setting and switching is accomplished in various manners such as manual input of front-panel key button or PC programming with various interfaces of RS-232, USB, and Ethernet.

The products have been designed not only to fully execute the DDC/HDCP function between any input and output switched, but also to have users designate any EDID to inputs for wide compatibility.

The products support wide-range compatibility with respect to systems, consisting of various HDMI/DVI graphic sources and HDTVs or DVI monitors. They also cover user's own programming with basic command sets of ASCII or Binary codes to offer flexible application with other video controllers or control software.

	Enables to make cross-switch between one of multi HDMI or DVI inputs and any of multi HDMI or DVI outputs.
	Complies with HDMI 1.3 standard and also with DDWG1.0 for DVI.
	Executes DDC in compliance with HDCP.
	Supports graphic computer resolution up to WUXGA (1,920x1,200) at 60Hz and HD up to 1080p (1,920x1,080).
	Offers various user interface: USB, RS-232, LAN (TCP/IP) control and Front keys.
	Supports two options to set EDID for graphic source by Factory setting and EDID learning.
	Offers three programming features for setting input and output connection and EDID setting by Manual on Front keys, GUI software and command line input through Hyper terminal or Telnet window.
	Fulfill real-time display of in-out set-up status on LCD front window in tapping front keys.
	19" Rack-mountable - Robust and heavy-duty case.
	Dimension: 444 X 230 X 74 mm
	Weight: 6.2Kg for 8x8, 6.0Kg for 6x6
