ODM44/ODM66/ODM88 : 4x4/6x6/8x8 DVI Matrix Router

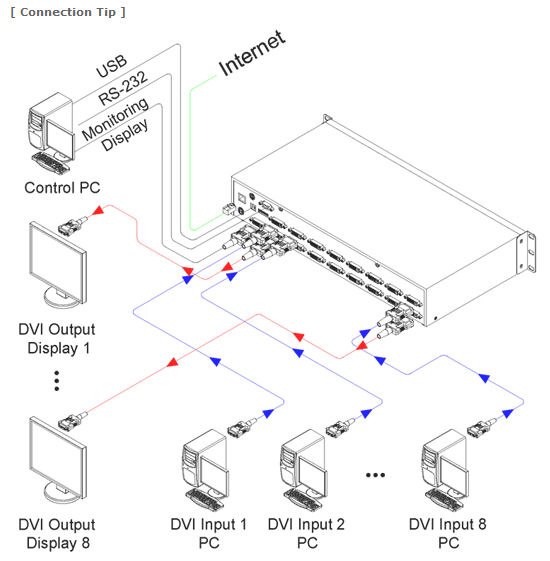

The products, ODM88, 66 and ODM44 enable you to make cross-switch between up to 8, 6 or 4 DVI sources from host computers in far locations and 8, 6 or 4 digital displays by using not only general PC software like Hyperlink terminal (serial communication) or web browser (LAN) but also Opticis’ dedicated software in our shipping group. Easy programming feature is accomplished in various manners such as manual input of front-panel key button or PC programming with various interfaces of RS-232, USB, and Ethernet.

The products have been designed not only to fully execute the DDC (Display Data Channel)/HDCP (High-bandwidth Digital Content Protection) function between any input and output switched, but also to have users designate any EDID to inputs for wide compatibility.

The products support wide-range compatibility with respect to systems, consisting of various DVI graphic sources and DVI monitors. They also cover user’s own programming with basic command sets of ASCII or Binary codes to offer flexible application with other video controllers or control software.

	Enables to make cross-switch between one of multi DVI inputs and any of multi DVI outputs.
	Supports graphic computer resolution up to WUXGA (1,920x1,200) at 60Hz and HD 1080p (1,920x1,080).
	Offers various user interface: USB, RS-232, LAN (TCP/IP) control and Front keys.
	Supports two options to set EDID for graphic source by Factory setting and EDID learning.
	Offers three programming features for setting input and output connection and EDID setting by Manual on Front keys, GUI software and command line input through Hyper terminal or Telnet window.
	Supports not only DDC but also HDCP for content protection.
	Fulfill real-time display of in-out set-up status on LCD front window in tapping front keys
	19" Rack-mountable - Robust & Heavy duty casing.
	Dimension: 444x230x74mm
	Weight: 6.2Kg for 8x8, 6.0Kg for 6x6, 5.5Kg for 4x4.
