HPCE422M는 coaxial cable(cctv or catv)를 통해 건물내의 네트웍 구축을 가능케하고,
최대 1.2km까지 랜 연장이 가능한 제품입니다.
기존에 동축이 설치되어 있거나, 장거리 네트웍 설치시 유용합니다.


The 2nd Generation Smart Bridge, enhanced with intelligence to support variant services which include:

• Configuration of TagVLAN, Queuing Scheme and Bandwidth control to help the deployment effectively.
• No extra Utility, no setting is needed. Just link to Plug & Play. Via the RJ-45 Ethernet port, you can connect the HPCE422M with the Ethernet-Interfaced devices such as STB (Set Top Box), Camera Server, or Switch/Hub.
• The high speed of 160/144Mbps will enable you to enjoy Video-On-Demand (VOD) or Multimedia-On Demand (MOD) services.

Features:

• Higher Data Rate 160Mbps for Low-Band (4-20Mhz) and 144Mbps for Mid-band (12-28MHz) HCNA Coax port as Home Network/MDU Backbone by using existing Coaxial cable
• Ethernet Management: Bandwidth Control Configuration, Status, Statistic, and Remote Management Control
• Two 10/100M Fast Ethernet ports for FTTH, DSL/Cable Modem, and Ethernet Terminals. Such as, PC, STB,…etc
• Distance up to 4000 Feet(-176dBm/Hz Noise Floor) over RG59 wires
• Filter Built-In to eliminate noise from TV
• Advanced QoS Priority and Mapping supports
• Queuing Schemes for Various QoS demands
• TagVLAN Configuration
• Service and Bandwidth Control
• IGMP Snooping Control
• Plug & Play
• Compact Size Design

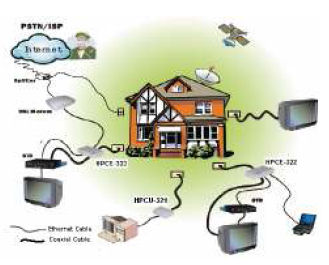

  Application
