VeCoax RF Modulator
비디오 신호를 RF 신호로 변환해 동축케이블을 통해 TV로 시청 가능하게함.
  판매가격 원
  제조사 PVIUSA
  생산국 USA
  배송기간 결제 확인후 15 ~ 20 일
  수량
수량 하나 증가
수량 하나 감소
관심상품 찜해놓기 친구에게 상품추천 장바구니에 담기
    제목 없음

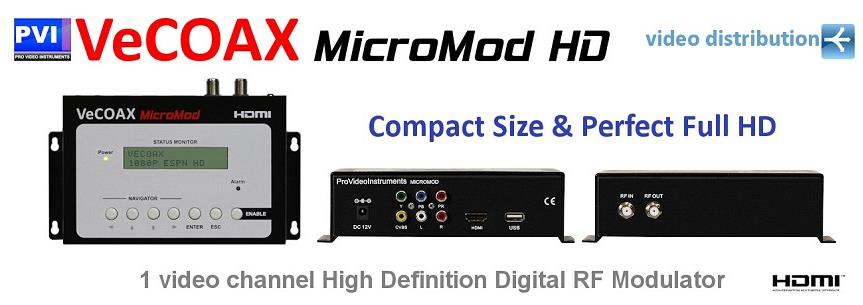

    Distribute 1x FULL-HD Video to All TVs over Coax

    VeCOAX MICROMOD 는 컴팩트하고, 경제적인 최상의 효과적인 Full HD modulator 입니다.
    동축케이블을 통해 텔레비젼 수량에 제한없이,  720p / 1080i / 1080p FULL HD 비디오 영상을 HD 텔레비젼에
    분배할 수 있는 최상의 솔루션 입니다.

    KEY Benefits

    • Distribute Any HD Video to All TVs Over the Existing Coax Cables

    • SAT & CABLE Boxes Tested & Approved

    • Very Cost Effective

    • Compact, Easy To install, Works in minutes, Anywhere

    • Noiseless - No Fans

    • Perfect Full Digital HD Quality, Same as the original Source - up to FULL HD 1080P

    • Universal Inputs - HDMI + Component + Composite + Audio - Select Via Software

    • HDMI input as standard, Connect the New Video Sources in Full Digital Top Quality

    • Ultra Low Delay, perfect also for Live Applications

    • Built In Amplifier, Works Directly with your Coax Distribution

    • Dolby Digital Sound + 5.1 + 7.1 - All Audio Modes

    • CC Closed Caption

    • Can be set to Any Channel Number

    • Set the Name to Pop-Up on the TV Screen

    • Expand to Multiple Channels adding more Units at any time

    • Change output via USB software at any time
      USA Off Air / USA QAM Cable / DVBT-T2 / DVBC-C2 / ISDBT / DMBT

    • Made In USA - 5 Years Warranty

    • The Best COMPACT HD Video Modulator on the market for the Best Price  -  Try One Today !

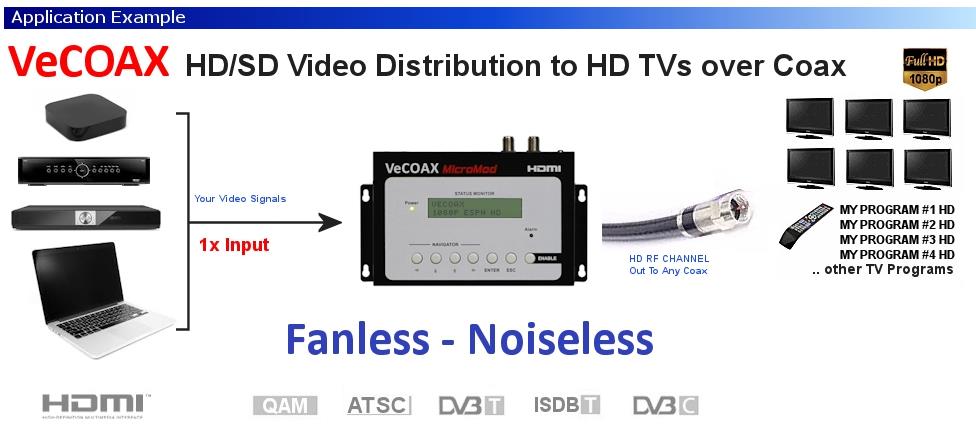

    Distribute your HD Video Signals to All TVs Over The Existing Coax Cables

    Perfect Full HD quality Anywhere, up to Full HD 1080P

    Ultra Low Delay, Perfect also for Live Applications
    Operation
    Installation Very Easy to setup - works in minutes - compatible to all existing coax cables and HD TVs
    1) Video Input Connect connect your video source with the included cable
    2) Channel Number Set the output channel number you want, Free & Available on your TV channel list
    3) Coax Output Connect our Coax output directly to your coax distribution splitter to all your TVs
    4) Watch on ALL TVs Scan your TVs and find your new HD channel, together with the other regular channels

    Video
    HD Video Quality Master-Quality,  Broadcast-Grade, outstanding small details & Perfect Motion on Sports
    Video Inputs 1X  HD/SD Audio-Video Inputs, selectable HDMI / COMPONENT / CVBS & digital/analog audio
    Input Resolution Auto-Detect - Up to 1080p FULL HD and full motion @ 60 Frames Per seconds
    VGA input Yes - Connects VGA and L/R audio via optional cable adapter scaler to the HDMI Inputs
    DVI input Yes - Connect directly any DVI video and L/R audio to the HDMI Inputs
    Bonus Channels USB port to play Video contents and playlists from a simple USB PEN
    Closed Caption / TXT Yes - all formats
    Encoding Modes All Modes - MPEG2 / MPEG4 H264 selectable by software per each channel up to 1080i/p
    ATSC 2.0 1080p Already Compatible with the Newest MPEG4 H264 ATSC 2.0 American Standard up to 1080p
    Encoding Latency ZERO latency encoding modes - perfect also for Live Applications
    Encoding Bitrates User selectable From 0.5 to 30 Megabits/s per channel - VBR/CBR Stat Mux
    Encoding Quality Broadcast-Grade TRIPLE-PASS Motion Estimation with CRYSTAL-VIEW Technology
    Encoding Control

    Video Bitrate, CBR/VBR, Ultra fast encoding modes, 1080P mpeg2 mode
    Audio
    Audio Inputs 1x software selectable between HDMI digital Embedded or L/R Analog
    Audio Format Selectable Dolby Digital / AC3 / Stereo / 5.1 - 7.1 pass-through / MPEG2 / AAC
    Audio / Video pair Each Video Input can use either Digital or L/R analog audio in ( select by software )
    Analog Audio with Digital Video Yes - can input analog Audio from the L/R ports and combine with the Digital Video Input

    Coaxial Output
    Standard Available: USA QAM CABLE - USA ATSC OFF AIR - DVBT/T2 - DVBC/C2 - ISDBTb - DMB-T
    Mer Quality Very High Quality Mer of 45dB+ the best reception on all TVs over any existing Coax Cables
    Spectrum Quality Totally Digital DDS spectrum for perfect operation on any coax, also adjacent to other channels
    Change Standard Output Standard can also be changed on site via software and USB cable
    Channel Numbers Can be set to Any Channel - ( Full Band 30-950 MegaHertz ) any bandwidth
    Output Level Full HeadHend RF level out +25 dB millivolts - Directly drives splitters and long Coax Cables
    Coax Distribution Distributes channels over any existing coax cable system to an unlimited number of Digital Televisions
    RF Carriers One Carrier our - full bandwidth / full quality
    USA QAM Digital Cable Model American Cable Standard - All Modes supported, including 64QAM and 256QAM
    USA ATSC OFF AIR Digital TV Model American Digital OFF-AIR  Standard - All Modes supported
    DVB-C Cable Model All DVB-C Modes supported, as well all world-wide standards J.83A + J.83B + J.83C + J.83D
    DVB-T/T2  Model All World-Wide Modes Supported - 6 / 7 / 8 Mhz Bandwidth - South America / NZ / AU / EU
    ISDB-Tb Model Brazilian Digital Terrestrial Standard - All Modes supported
    DMB-T Model Chinese Digital Terrestrial Standard - All Modes supported
    PSI / PSIP / NIT / EIT / VCT .. All Supported
    Control
    Front Panel Easy Setup & Control through display and panel keyboard - Clear Led Status Indicators visible anywhere

    Channels Expansion
    Daisy-Chain or Coax Combiners Can connect Multiple Units also of different models for the wanted number of channels

    General
    Power External Pro Power Supply - 100-240VAC 50/60Hz, 24W max
    USA Standard Model Enclosure Dimensions & Weight 6.3" H x 9,5" W x 2 D
    160 mm H x 240 mm W x 50 mm D
    2.2 lbs (1 kg )
    International M4 Model Enclosure Dimensions & Weight ONLY If MPEG4 option is selected
    valid only for:
    EU / AU / BR / Latin America
    DVB-T / DVB-C / ISDBTb only
    4.4" H x 6.1" W x 2 D
    110 mm H x 155 mm W x 50 mm D
    1.1 lbs ( 0,5 Kg )
    Shipping Dimensions (individual) Carton Box 13" H x 14.2" W x 3.6" D
    330 mm H x 360 mm W x 90 mm D
    Max Shipping Weight 5.51 lbs (2.5 kg)
    Cooling Natural Air Circulation - FanLess - Noiseless
    MTBF 55,000 hours
    Compliance FCC Class A, IEC60065, EN61000, CE, RoHS, RCM, C-Tick
    Warranty 5 years
    Rear Panel Available connectors and layout changes based on model and options
    The content of this document is subject to revision without  notice due to continued progress in methodology, design and  manufacturing.
    PVI shall have no liability for any error or damage of any kind resulting from the use of this document.
    Cables and accessories
    Power Supply Included - compatible to your country socket
    Video Input Cables Included
