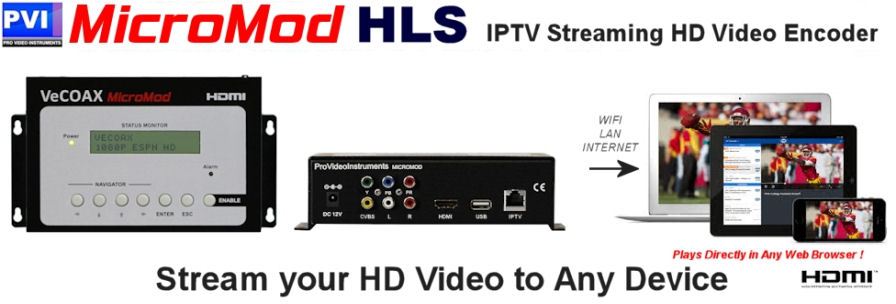

IPTV Streaming HD Video Encorder.
HD Video를 Any Device로 실시간 전송합니다.
  판매가격 원
  배송기간 결제 확인후 15 ~ 20 일
  수량
수량 하나 증가
수량 하나 감소
관심상품 찜해놓기 친구에게 상품추천 장바구니에 담기







    Distribute 1x FULL-HD Video Over HLS IPTV




    MICROMOD HLS 는 HD Video를 대부분의 Tablet, Phone(삼성.애플,등등..), IP box & TV,로
    최신 HLS technology를 사용하여, Browser를 통해 실 시간 전송 합니다.
    이 때  별도의 player app 또는 software를 요구하지 않습니다.

    MICROMOD HLS     는 교회, 학교, 공항, 버스, 열차, 스포츠 바, 홈 안에서 고객들에게 IPHONE, IPAD, GALAXY,
    TABLETS, PC, MAC,을 통해 Full HD 실시간 영상을 서비스 할 수 있게 합니다.

    사람들은 좋아하는 또는 필요로 하는 비디오 영상을 볼수 있고, 해드셋을 통해 직접 소리를 들을 수
    있습니다.

    MICROMOD HLS connects directly to any LAN, WIFI, Internet Network

    It works also remotely over the internet, delivering the live stream to guests anywhere


    KEY Benefits

    • HD Live Audio/Video Distribution over IP & Internet Networks

    • HLS Streaming PLAYS THE VIDEO DIRECTLY IN THE WEB BROWSER

    • DOES NOT REQUIRE TO INSTALL SPECIFIC APP to play the video stream

    • UNIVERSAL PLAYBACK on Apple, Samsung, PC, MAC, Others, FREE

    • Does not require paid playback software and apps - FREE playback anywhere

    • Watch your Video over IPADS, IPHONES, GALAXY, SURFACE, etc

    • Compact, Easy To install, Works in minutes, Anywhere

    • Noiseless - No Fans

    • Perfect Full Digital HD Quality, Same as the original Source - up to FULL HD 1080P

    • Universal Inputs - HDMI + Component + Composite + Audio - Select Via Software

    • Built-In Server, stream directly to your network or the internet

    • Low Delay, perfect also for Live Applications
      ( playback devices adds some buffering to the stream depending from the network )

    • Supports HLS / RTP / RTSP / HTTP / UDP, one at time, selectable via software

    • Integrated Unicast server for intranet / internet streaming to multiple devices

    • Serve unlimited video devices up to the max available bandwidth of the network (Gigabit)
      For even larger audiences, can always relay on additional media servers to repeat

    • The stream link can also be used on existing web sites & pages to embed video in the page

    • The stream link can be sent via email to click and open / play on any device

    • The stream play can be protected setting permissions and/or mac addresses list on the router

    • Easy Setup via Local display & keyboard, or WEB Browser via login

    • Expand to Multiple Channels adding more Units at any time

    • USB Port to record the live video or playback one or more TS files to the IP network

    • Made In USA - 5 Years Warranty

    • The Perfect HD Video Streaming solution for ANY Application


    Distribute your HD Video Signals to IPADS, IPHONES, GALAXY, Tablets, Computers, Any other Device

    Perfect Full HD quality Anywhere, up to Full HD 1080P

    Works on any WIFI, LAN, Internet direct to all the playback devices

    Operation

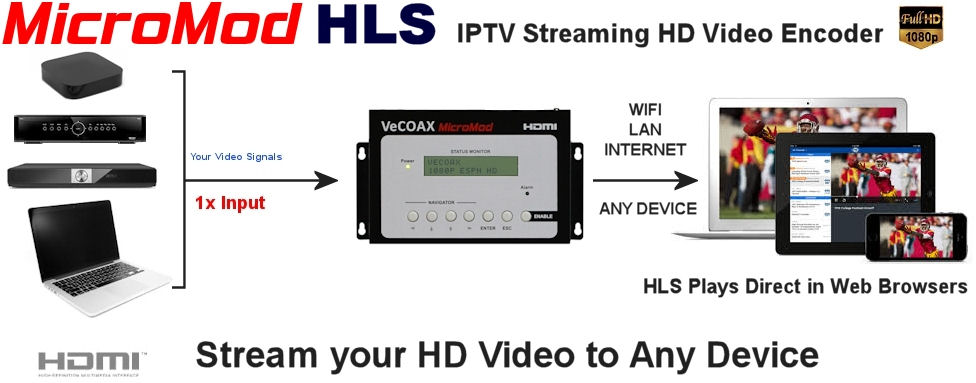

    Installation Simple Installation, Easy Setup, works in minutes anywhere
    1) Connect Video Input Connect your video source - HDMI / Component / Composite / Analog or HDMI Audio
    2) Connect Network Connect your LAN / WIFI Network or a dedicated WIFI access point in public areas
    3) PLAY Connect your IPHONE, IPAD, GALAXY or any device to the network,
    open the web browser to the ip link, play the video in full hd

    Video
    HD Video Quality Any resolution up to 1080p full HD
    Video Inputs 1X  HD/SD Audio-Video Input, selectable HDMI / COMPONENT / CVBS & digital/analog audio
    Input Resolution Auto-Detect - Up to 1080p FULL HD and full motion UP TO @ 60 Frames Per seconds
    VGA input Yes - Connects VGA and L/R audio via optional cable adapter scaler to the HDMI Inputs
    DVI input Yes - Connect directly any DVI video and L/R audio to the HDMI Inputs
    File playback USB port to play Video contents and playlists from a USB Memory
    Closed Caption / TXT Yes - all formats
    Video Encoding MPEG4 H264 Triple pass stat mux with advanced dynamic multi-layer motion estimation
    Encoding Bitrates User selectable From 0.1 to 8 Megabits/s per channel - VBR/CBR Stat Mux
    For Bluray Disk Like Quality in Full HD 1080P 2 megabit/s per stream are required
    Bitrate can be adjusted by user to match the application needs
    Encoding Quality Broadcast-Grade

    Audio
    Audio Inputs 1x software selectable between HDMI digital Embedded or L/R Analog
    Audio Format MPEG2 / MPEG4 / AAC
    Analog Audio with Digital Video Yes - can input analog Audio from the L/R ports and combine with the Digital Video Input

    IPTV Output
    IPTV Protocols Select Via Software: HLS ( direct play in any web browser ), UDP, RTP, RTSP, HTTP
    Streaming Server Built-In, No Need to add external computer, streams directly to LAN / WIFI / INTERNET
    Max playback devices Unlimited, Up to the max available bandwidth ( 1 Gigabit )
    As example, if the stream bitrate is set to 1 megabit, there could be 800+ simultaneous playbacks
    A media server can always be added on the network, to receive one stream and rebroadcast
    so using repeater servers the number of simultaneous players could grow to unlimited at any time

    Control
    Front Panel Easy Setup & Control through display and panel keyboard - Clear Led Status Indicators visible anywhere
    Remote WEB Interface Remote control from anywhere via web interface with secure user/pass

    Channels Expansion
    Multiple Units Can connect Multiple Units to the same network for the wanted number of concurent channels

    General
    Power External Pro Power Supply - 100-240VAC 50/60Hz, 24W max
    Enclosure Dimensions & Weight 6.3" H x 9,5" W x 2 D
    160 mm H x 240 mm W x 50 mm D
    2.2 lbs (1 kg )
    Shipping Dimensions (individual) Carton Box 13" H x 14.2" W x 3.6" D
    330 mm H x 360 mm W x 90 mm D
    Max Shipping Weight 5.51 lbs (2.5 kg)
    Cooling Natural Air Circulation - FanLess - Noiseless
    MTBF 55,000 hours
    Compliance FCC Class A, IEC60065, EN61000, CE, RoHS, RCM, C-Tick
    Warranty 5 years
    Rear Panel Available connectors and layout changes based on model and options
    The content of this document is subject to revision without  notice due to continued progress in methodology, design and  manufacturing.
    PVI shall have no liability for any error or damage of any kind resulting from the use of this document.
    Cables and accessories
    Power Supply Included - compatible to your country socket
    Video Input Cables Included
