Product: VGA 1x4 Hub
|
|
Part
#: 500151
|
VGA 1x4 Distribution Hub 는 하나의(1) VGA (RGBHV) source를 UTP Cat5/6 케이블을 통해 4곳까지 분배하기 위한 제품입니다.

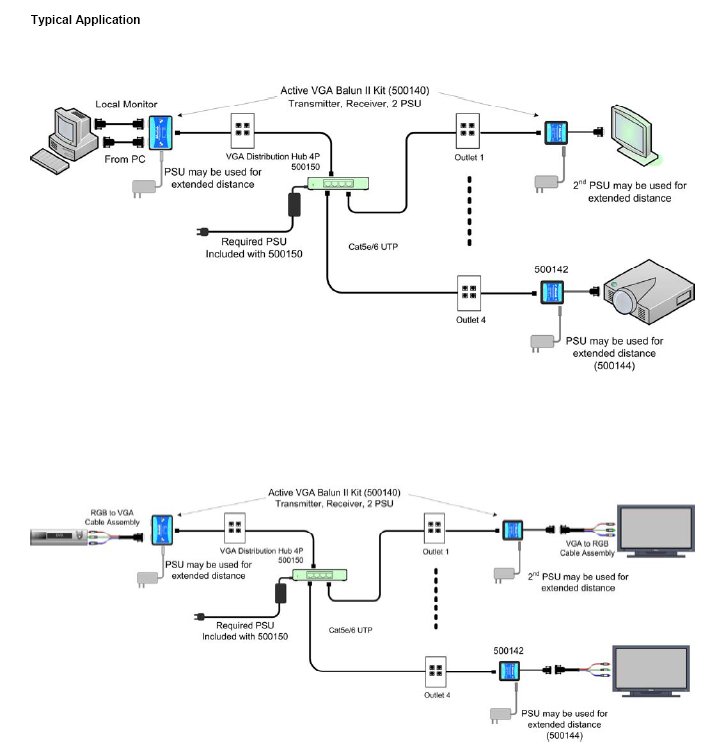

그 허브는
Active VGA Balun II Kit (500141) 과 Active
VGA Balun II Receivers (500142) 와 연결됩니다.
At least one (1) 500140 is required to support
one (1) display. Up to three (3) additional 500142 may be added to support up to
three (3) additional displays.
|
|
|
|
- Plug and Play -
DDC1 and DDC2 Compliant
- Remote power up to
150 ft (46 m)
- Modular RJ45 on
input and output
- Supports up to
1920 x 1440, 1080p
- Ground loop
isolation on every port
- Works in
conjunction with 500140 and 500142.
|
Maximum Distance - Video
640 x 480 (VGA): 700 ft (213m)
800 x 600 (SVGA): 600 ft (183m)
1024 x 768 (XGA): 550 ft (167m)
1280 x 1024 (SXGA): 550 ft (167m)
1600 x 1200 (UXGA): 500 ft (152m)
1800 x 1440: 400 ft (122m)
1920 x 1440: 400 ft (122m)
Max Distance – Component Video (YPbPr) via Cat 5 (or better) Twisted Pair
480i/p: 1,000 ft (305 m)
1080i: 850 ft (260 m)
1080p: 600 ft (180 m)
* VGA-to-component video cables required (not included)
