Product: Streo PC Audio Balun

Part #: 500030

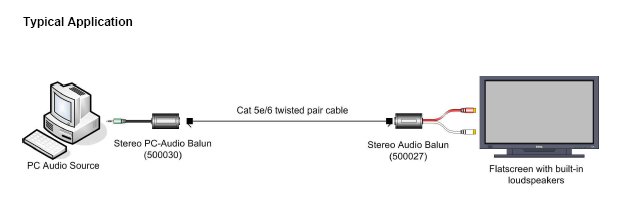

The Stereo PC-Audio Balun allows unbalanced line level stereo analogue audio to be transmitted via Category 5/6 unshielded copper twisted pair (UTP) in a point-to-point connection. The product is designed for audio equipment equipped with 3.5mm line-level stereo output such as PC sound cards, laptops and multi-media servers where midrange audio frequency response is required. The Stereo PC-Audio Balun also works in conjunction with other MuxLab products such as the 500019, 500001, 500012, 500017, 500027, 500028 and 500200 for a more complete cabling solution.

Features & Benefits

Cost-efficient cabling Up to 5,000 ft (1.5km) via Cat 5/6 UTP Built-in 3.5mm stereo plug lead Eliminate additional adaptors Compact design
