SecurityProbe-X20

새로운 SecurityProbe-X20 는 환경의 변화, 전력, 물리적 징조 와 보안을 위한, 8 포트의 식별력있는 센서 입력 포트와 4 포트의 아나로그 카메라, 20 포트의 dry connect 입력단자를 장착할 수 있는 장비입니다.

사무실, 전산실, 연구소 및 실험실, 통신실, UPS/Battey, 물류창고, 온실, 냉동실 등 환경에 민감한 장소에 설치 원격에서 네트웍을 통해 실시간으로 온도, 습도, 누수, 공기의 흐름, 보안, AC/DC voltage, Dry contacts, Motion Detector, Smoke Detector 등을 웹상으로 모니터링 할 수 있습니다.

The ultimate monitoring system solution!

The securityProbe-X20 is the next generation dry contact device with an advanced 20 dry contact inputs. It comes in a 1U rackmount box. The securityProbe-X20 has a Linux Operating System with 128 Megabytes of Flash memory and 64 Megabytes of SDRAM. It is TCP/IP compliant and runs lighttpd web server including https (SSL), Bash, Perl, vi, Telnet, PHP, Email and Nagios. The securityProbe-X20 has an easy-to-use web-based user interface for sensor configuration, data collection and extensive graphing. Complete SNMP functions such as SNMP v3 encryption are supported. The web-based interface is written in PHP allowing end-user changes such as language translation. The securityProbe-X20 has a battery backed time of day clock for accurate record keeping.

Many different types of equipment and devices use dry contact outputs to send alarm signals to remote panels, remote monitoring systems, and building management systems. Communicating the status of these dry contact systems is important in a complex Enterprise network, or automation industry to protect the mission critical installations of expensive equipment.

Architecture

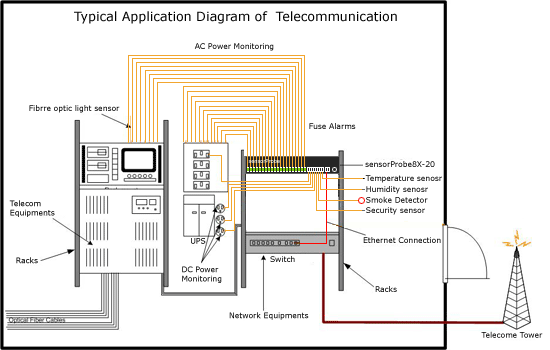

At the core of the securityProbe-X20 is the securityProbe, which is then married with the 20 dry contact system. This offers support for remote monitoring and management of various external devices. This integrated system enables connection and monitoring of devices like HVAC systems, Security Equipment, UPS, Generators, Industrial Equipment etc. The securityProbe-X20 embedded web server makes the addition of these devices easy.

The securityProbe-X20 comes with 8 full autoSense RJ-45 ports for connecting any of our intelligent sensors. An additional 20, 2 wire dry contact ports are provided giving a total of up to 28 dry contact ports. The specially designed 2 wire dry contact ports are easy to use and allow you to make your own dry contact cables quickly and easily.

Embedded Linux System
The securityProbe-X20 is based on a 32-bit Xscale PXA270, 312 MHz processor. It includes 64 Megabytes of SDRAM and 128 Megabytes of nonvolatile flash memory, along with 10/100 Mbps Ethernet and two serial ports. With a real Linux kernel running on the system, the securityProbe-X20 is able to embed many applications such as lighttpd web server, including encrypted https web pages, Bash, Perl, vi Telnet, PHP, Email, and Nagios.

4 Camera Features
Capable of connecting up to 4 external cameras, the securityProbe supports a wide range of analog cameras: such as existing security cameras, sophisticated night vision, or low cost CCTV cameras. The securityProbe can display pictures in several sizes, up to 640x480 pixels. It is capable of displaying pictures from 4 cameras simultaneously.
Note: all cameras must use the same Video Broadcast Standard - PAL or NTSC

This figure displays the BNC receptacle inside the securityProbe-X20

Video Conferencing and Sensor Graphing
Video conferencing is activated by connecting external camera to securityProbe-X20 for facilitating communication. The speaker and microphone are integrated securityProbe-X20 hardware. A regular Open H.323 protocol is used, with many different audio and video codecs supported (such as G.711-uLaw-64k, RFC2190 H.263-CIF, and H.261-CIF).

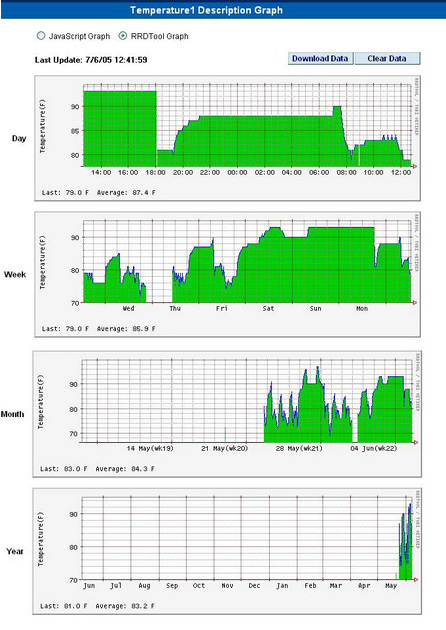

The securityProbe-X20 integrates and displays graphs, plotted by RRD Tool into its web-based user interface, with Apache running as the regular and secured web server. The individual graph (day, week, month, and year) for each sensor type can be customized, simply by modifying the script template used to generate a particular graph.

Intelligent Sensor and Dry contact Integration
The securityProbe-X20 works with every intelligent sensor in the AKCP family. You can connect up to 8 of our autoSense sensors in any combination to monitor temperature, humidity, water leakage and airflow including long term graphing, security, detection of AC power line voltage, measurement of Digital Voltmeter, control relays, and many more such uses. The AKCP range of sensors also includes an integrated data collection and graphing package that is especially useful in spotting trends and providing information for analysis.

The new feature in securityProbe-X20 is, the integration with a single chip relative humidity and temperature multi sensor module comprising a calibrated digital output. The sensor includes a capacitive polymer sensing element for relative humidity and a bandgap temperature sensor. Both are seamlessly coupled to a 14bit analog to digital converter and a serial interface circuit on the same chip. This results in superior signal quality, a fast response time and insensitivity to external disturbances (EMC). By having both temperature & humidity sensors in a single sensor, can be up to 1,000 feet, the securityProbe-X20 can have up to a maximum of 8 temperature & 8 humidity sensors. This extends the capability of the securityProbe-X20 to maximum of 16 sensing parameters.

Sensor Notification Wizard
When an event occurs, the securityProbe-X20 can send SNMP traps, email, SMS, MMS, make a telephone call, and make audio alert. These alert messages are customizable and can include a picture of the event. Besides notification alerts, events information including pictures are stored in a nonvolatile flash memory. The number of pictures to take is customizable, for each camera, up to 2 pre-event, and 16 post-event pictures. Interval between each picture also can be customized. The timestamp is displayed below each image. The securityProbe-X20 has a battery backed time of day clock to facilitate accurate record keeping.

This illustrates 4 pictures from each camera at the total of 16 pictures        from all 4 cameras under one event

False Message Filter
In order to prevent false alarms, the securityProbe-X20 provides an extensive filtering of events. You can limit events based on the time of day or the day of the week. This is especially useful with the sensor like the motion detector, when you may want to process an event only when the business is closed.

Automatically Shutdown your Equipment in an Emergency
AKCP's Linux devices will automatically send a shutdown message to your Linux or Windows based servers - so if there is a power outage, for example, you can rest assured that your servers will be safely and automatically shut down before your UPS runs out.
