SensorProbe8

새로운 SensorProbe8 는 환경의 변화, 전력, 물리적 징조 와 보안을 위한, 8 포트의 식별력있는 센서 입력 포트를 가진 장비입니다.

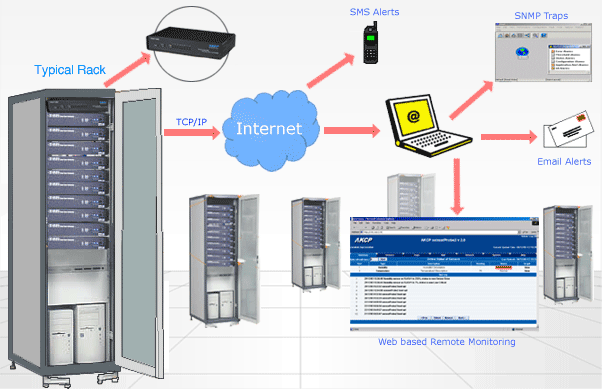

사무실, 전산실, 연구소 및 실험실, 통신실, UPS/Battey, 물류창고, 온실, 냉동실 등 환경에 민감한 장소에 설치 원격에서 네트웍을 통해 실시간으로 온도, 습도, 누수, 공기의 흐름, 보안, AC/DC voltage, Dry contacts, Motion Detector, Smoke Detector 등을 웹상으로 모니터링 할 수 있습니다.

Intelligent monitoring solutions for your Enterprise resources!

Adaptability for your existing systems

sensorProbe8 comes with 1U rackmount bracket for easy installation in your existing racks and enclosures. The sensorProbe8 a complete fit for your rackmount monitoring solutions with an optional security sensor to tell you when the cabinet door has been opened and a graphical airflow monitoring interface with our Airflow sensor.

SP8 system logging records every event in it’s embedded database, you can see a time stamp of when the sensor alarm was raised and the action taken place. Download this using our utility to prepare a QoS report..

Features
	Fully embedded TCP/IP and Web server
	Built in notification features - Email, SMS and SNMP traps
	Sends email notifications to five email addresses
	8 autosense ports for connecting any sensor from the AKCP family.
	A new improved web based interface for easy configuring and monitoring
	Login for User and Administrator for better security
	Battery backed time of day clock for an accurate system date and time
	System logging features with time, date, action.
	A standalone product without any external hardware and software dependencies.
	Micro code firmware update over the internet.
	Customized color configuration for displaying alerts,
	Network Management System integration
	Advantages
	One year warranty, Optional two year warranty
	Unlimited lifetime support
	Includes complete, easy to understand documentation

Specifications
	Dimension
	Size 9.2" x 5.42" x 1.80" - 1 U Rack Mount Standard
	Weight
	1.72 pounds
	Mounting
	1U rackmount includes rackmount kit.
	Status Indication
	LED indication for Power
	LED for Network Connectivity
	LED for sensor online and threshold status
	Network Interface
	Standard 10 Base-T Ethernet RJ-45
	Power Requirements
	7.0 - 9 V / >= 1 Amp
	Power Consumption
	Typical 1.425 Watt, 0.19A
	Inputs
	8 RJ-45 ports for connecting AKCP sensors
	Configurable analog inputs on any of the 8 RJ-45 sensor ports (0-5VDC)
	Output
	Configurable output signals(0VDC/5VDC) on any of the 8 RJ-45 sensor    ports
	Operating Environment
	Temperature : Min. -35° C - Max. +55° C
	Humidity : Min. 20% - Max. 80% (Non-Condensing)
	For full details and test results follow this link to: Environment test
	Components
	Manufactured using highly integrated, low power  &’surface mount technology to ensure long term reliability.
	MTBF
	860,000 hours
