Current Loop 2 Sensor (250A)
전류 센서
  판매가격 원
  배송기간 결제 확인후 15 ~ 20 일
  수량
수량 하나 증가
수량 하나 감소
관심상품 찜해놓기 친구에게 상품추천 장바구니에 담기

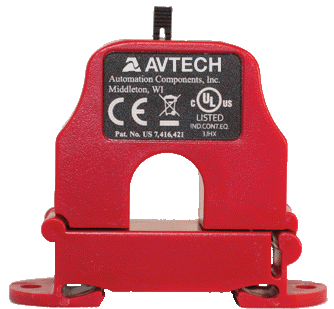

    Current Loop 2 Sensor (250A)
    AVTECH's Current Loop 2 Sensor (250A) monitors the electrical current flowing through a single-phase powered cable. It outputs a signal of 0 to 5 VDC (volts of direct current), which your built-in or external Room Alert Analog Sensor Port then converts into an amp (A) reading. By pairing a Current Loop with your Room Alert monitor, you can easily determine the power consumption of an electrical appliance or device at your facility. The Current Loop can be easily moved to various appliances as needed and will help you monitor power consumption to determine if a power drop might be causing a problem or if an appliance is drawing too much power. The cost of electricity is one of the fastest growing costs and concerns for IT managers so knowing that a problem exists is the first step in resolving the problem.

    Product # RMA-CL2-SEN



    Click For More Images

    Overview

    AVTECH's Current Loop 2 Sensor monitors the electrical current flowing through a single-phase powered cable. It outputs a signal of 0 to 5 VDC (volts of direct current), which your built-in or external Room Alert Analog Sensor Port then converts into an amp (A) reading. By pairing a Current Loop with your Room Alert monitor, you can easily determine the power consumption of an electrical appliance or device at your facility. The Current Loop can be easily moved to various appliances as needed and will help you monitor power consumption to determine if a power drop might be causing a problem or if an appliance is drawing too much power. The cost of electricity is one of the fastest growing costs and concerns for IT managers so knowing that a problem exists is the first step in resolving the problem.


    Features & Specification

    Current Loop 2 Sensor


    Environment Condition Monitored
    Type Of Sensor
    Power Supply
    Included Sensor Cable Type
    Included Sensor Cable Length
    Maximum Sensor Cable Length
    Output Voltage
    Input Amperage Range
    Accuracy
    Response Time
    Operating Frequency Range
    Isolation Voltage
    Maximum Sensing Current Voltage
    Aperture (Hole) Size
    DIN Rail Size
    Operating Temperature Range
    Operating Humidity Range
    Enclosure Rating
    Compatible Products


    Electrical current (amps)
    Switch
    Induced from monitored conductor
    Low-voltage 2-wire speaker cable
    25'
    100'
    0 to 5 VDC
    0 to 250 A
    +/- 1.0% (5 to 100% FSO)
    < 100 mS
    50 to 600 Hz
    2,200 VAC
    600 VAC
    0.75" (Accepts cables up to 350 MCM)
    35 mm
    -15 to 40º C (5 to 104º F)
    0 to 95% RH, non-condensing
    UL94-5VB
    Room Alert Analog Sensor Port (built-in or external)



    The AVTECH Current Loop 2 Sensor (250A) Includes:
    (1) Current Loop 2 Sensor (250A)
    (2) #8 x ¾" TEK mounting screws
    (1) 25' speaker wire cable
    Installation Note & Instruction Sheet
    90-Day Warranty & Replacement Guarantee
    AVTECH's many years of experience since 1988





    Sensors to monitor temperature, power, humidity and more...



    Temperature

    Humidity

    Power (On / Off)

    Flood / Water

    Smoke / Fire

    Air Flow

    Room Entry

    Motion

    Relay Output

    Power (Amps)

    Fluid Temp

    More...Temperature
