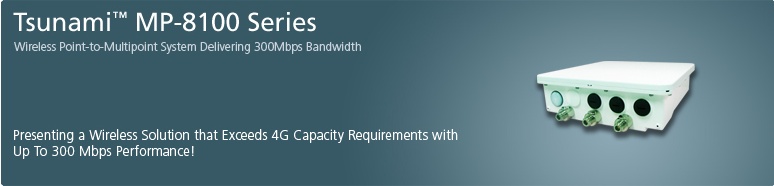

MP-8100
최대 300Mhz를 지원하는 일대다 무선 브릿지.
  판매가격 원
  제조사 Proxim
  생산국 USA
  배송기간 결제 확인후 15 ~ 20 일
  수량
수량 하나 증가
수량 하나 감소
관심상품 찜해놓기 친구에게 상품추천 장바구니에 담기



    World-class Performance

    With up to 300 Mbps data rates, the Tsunami™ MP-8100 delivers wireless performance in excess of 4G
    products on the market today.

    Flexible Channel Planning Worldwide

    Provides flexible channel planning with support for a wide range of licensed and unlicensed frequencies
    from 4.9-6.4 GHz and 2.3-2.5 GHz and Supports Dynamic Frequency Selection (DFS) globally in all 5GHz bands,
    which eliminates the worry of network interoperability and interference.

    Carrier Grade Advanced Security

    Advanced AES encryption for military-grade over-the-air communications, and radio mutual authentication
    to eliminate rogue units/man-in-the-middle attacks.
    Features highly-secure remote management via SSL, SSH and SNMPv3.

    NLOS and Advanced Features

    The MP-8100 utilizes OFDM and enhanced 2x2 and 3x3 MIMO techniques to offer better RF interference mitigation
    and better non-line-of-sight (NLOS) support for a highly robust wireless link with ranges up to 43 miles (70Km).

    PRODUCT MODELS
    MP-8100-BSU-US Tsunami® MP-8100, Base Station Unit, 300 Mbps, MIMO 3x3, Type-N Connectors - US PoE
    MP-8100-SUA-US Tsunami® MP-8100 Subscriber Unit, MIMO 3x3, Type-N Connectors - US PoE
    MP-8150-SUR-US Tsunami® MP-8150 Subscriber Unit, MIMO 2x2, 23 dBi Integrated antenna - US PoE
    MP-8100-BSU-WD Tsunami® MP-8100, Base Station Unit, 300 Mbps, MIMO 3x3, Type-N Connectors - WD PoE
    MP-8100-SUA-WD Tsunami® MP-8100 Subscriber Unit, MIMO 3x3, Type-N Connectors - WD PoE
    MP-8150-SUR-WD Tsunami® MP-8150 Subscriber Unit, MIMO 2x2, 23 dBi Integrated antenna - WD PoE
    INTERFACES
    WIRED ETHERNET Two auto MDI-X RJ45 10/100/1000Mbps Ethernet
        - Port #1 with PoE in & Data
        - Port #2 with PoE out (802.3af pin out) & Data
    WIRELESS PROTOCOL WORP (Wireless Outdoor Router Protocol)
    RADIO & TX SPECS
    MIMO 3x3 MIMO, 2x2 MIMO (MP-8150)
    MODULATION OFDM with BPSK, QPSK, QAM16, QAM64
    FREQUENCY 2.3 – 2.5 GHz
    4.9 – 6.0 GHz (Subject to Country Regulations)
    CHANNEL SIZE 40 MHz, 20 MHz, 10 MHz, 5MHz
    DATA RATE MCS 0 to 15 for High Throughput mode (6.5 – 300 Mbps)
    BPSK, QPSK, 16-QAM and 64-QAM for legacy mode (6Mbps - 54Mbps
    TX POWER Up to 21dBm (two Tx chain)
    TX POWER CONTROL 0 – 21dB, in 1dB steps
    RX SENSITIVITY (BER=10-6)
    Channel Size 40 MHZ 20 MHZ
    MCS 0 / MCS 8 -87dBm -93dBm
    MCS 7 -71dBm -75dBm
    MCS 15 -69dBm -71dBm
    ANTENNA
    Model MP-8150-SUR includes an Integrated 2x2 MIMO 23dBi Dual Polarized Antenna
    Model MP-8100-BSU and MP-8100-SUA includes three N-type Antennas Connectors with bulit-in Surge Protection
    MANAGEMENT
    LOCAL RS-232 serial (RJ11 to DB-9 dongle provided)
    REMOTE Telnet and SSH, WebGUI and SSL, TFTP, SNMPv3
    SNMP SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
    NETWORK
    GATEWAY FEATURES DHCP Server & relay, NAT with Std ALGs, Bridging, Routing, Syslog, SNTP
    QoS
    Asymmetric Bandwidth Control Uplink and Downlink CIR Control "committed information rate" per service flow
    Uplink and Downlink MIR Control "maximum information rate" per service flow
    Packet Classification Capabilities 802.1D/802.1Q/802.1p priority, IPTOS, VLAN ID, IP source/destination address, source/destination port, Ethernet source/destination address, IP protocol, and Ethertype
    Scheduling Best Effort, Real Time Polling Services
    VLAN 802.1Q: Management VLAN. Transparent, Access and Trunk mode
    ENVIRONMENTAL SPECS
    TEMPERATURE OPERATING -40º to 60ºC (-40º to 140º Fahrenheit)
    STORAGE -55º to 80ºC (-67º to 176º Fahrenheit)
    HUMIDITY Max 100% relative humidity (non-condensing)
    PHYSICAL SPECS
    DIMENSIONS PACKAGED 15.94 x 15.94 x 8.46 in (405 x 405 x 215 mm)
    UNPACKAGED 10.51 x 10.51 x 3.27 in (267 x 267 x 83 mm)
    WEIGHT PACKAGED 14.77 lbs (6.7 kg)
    UNPACKAGED 7.27 lbs (3.3 kg)
    IP RATING IP67
    SAFETY STANDARDS UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950
    PACKAGE CONTENTS
    • One Tsunami® MP 8100-BSU with three N-type surge protected connectors, One Tsunami® MP 8150-SUR with 5 GHz dual polarity 23 dBi Integrated antenna, or One Tsunami® MP 8100-SUA with three N-type surge protected connectors
    • One power injector and country specific power cord
    • One Wall/Pole mounting kit
    • One Connector weatherproofing kit (Includes all recommended weatherproofing material)
    • Three N-connector weather proofing caps installed at factory (for Connectorized Version Only)
    • One Serial (RJ-11 to DB9) dongle
    • One Grounding kit
    • One Gigabit PoE Surge Arrestor
    • One Documentation
    • Software CD-ROM



    * MP-8100 Data
